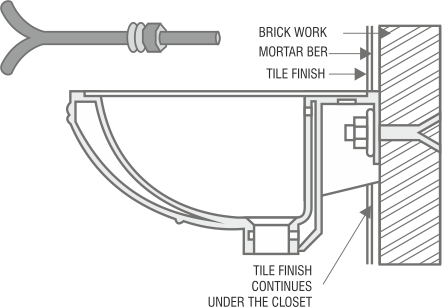

Wall Hung Basin
As Per Shown In The Picture. The Rag Bolt Must Be Crouted Into The Cement/Concrete Wall. The Bolts Must Be Fixed To The Cement/Concrete Wall. Allow Selting & Checking Than Install It Using Nut And Washer.
![img](/public/img/technical/wall_hung.png)
Counter Washbasin
At The Beginning
- A Skilled or Experienced Person Should Install Counter Lavatories.
- Avoid Using Adhesive With This Product.
- Check The Waste Area And Supply Tubing If Required.
- Do Not Open The Lavatory From Its Protective Carton Until You Are Ready For Intstallation.
- Please Follow All Local Building And Plumbing Codes.
Material & Tools
Measure Tape, Keyhole Or Saber Saw. Hammer, Glasses, Rags Or Paper Toweling. Drill (1/2 Dia, Drill Or larger), Pencil, Sealant, Sealant, Sharp Knife Or Scissors.
![img](/public/img/technical/material_tool.png)
Installation Of Lavatory
Please Note : Please Install It In A Way That Future Removal From Underneath The Counter Top Is Possible Without Damaging The Counter Top.
- Please Check The Desired Location For Clearance Between The Back Splash, Faucet, Fixture And Cabinet.
- Please Cut The Template.

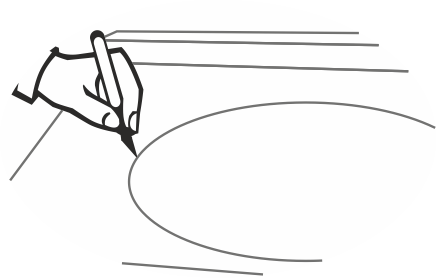

- Please Carefully Trace The Template On The Counter Top Directed.
- Please Mark The Faucet Hole Centerline On The Counter Top.
- Please Drill A 1/2" Pilot On The Inside Of The Cut Line.

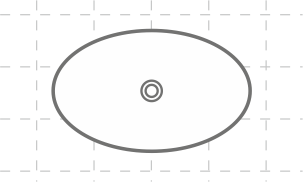

For Wood Counter Tops
- Mark And Per-Drill The Wood Screw Holes At The Locations Shown On The Template.
- Waterproof Any Exposed Areas Of Wood.
![img](/public/img/technical/wood_counter_top.png)
For Marble Counter Tops
- Position The Counter Top Upside Down On Foam Padding To protest The Surface Mark
And Drill 3/6” Holes 5/8” Deep At The Locations Shown On The Template. - Use A Setting Tool And Hammer To Secure The Anchors.
![img](/public/img/technical/marble_counter_top.png)
For All Installations
- If The Counter Top Has Not Been Installed, Install It At This Time.
- Drill The Faucet Holes According To The Faucet Installation Instructions.
- Install The Faucet To The Counter Top According To The Manufacture’s Instructions.
- Install The Drain To The Lavatory According To The Manufacture’s Instructions.
![img](/public/img/technical/for_all_aolutions.png)
Maintenance
Like Any Other Part Of Your House. The Bathroom Can be Made To Look Great And Made To Last Taken Care Of Regularly. To Make Your Bathroom Beautiful Here Are Some Invaluable Tips.
![img](/public/img/technical/Maintenance.png)
Wash Basin
A Mild Detergent Can Be Used To Wish The Basin At Least once A Day. After Washing, The Basin Should Be Wiped Out Clearly To Avoid Water Stains.
